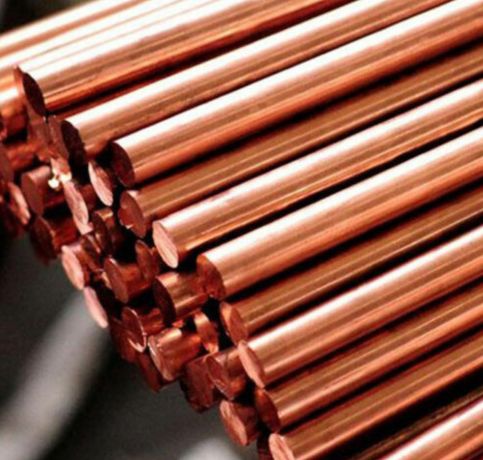

Aung Metals stands out as a top-notch manufacturer and supplier located in Naypyidaw, Myanmar, with a focus on high-quality Copper C10500 Bars and Rods. Known for their remarkable purity and precision, Aung Metals delivers products that adhere to international standards, catering to a variety of industrial needs. These bars and rods boast excellent electrical and thermal conductivity, impressive corrosion resistance, and superb workability, making them perfect for even the toughest environments. With a strong dedication to innovation, quality control, and prompt delivery, Aung Metals proudly serves clients in sectors like electrical, automotive, and marine industries, providing durable and high-performance copper solutions.
Copper C10500 bar/rods are a commercially pure, oxygen-free copper renowned for its exceptional electrical and thermal conductivity. It is composed of a miniThe Copper C10500 Bars and Rods are primarily made of high-purity copper (about 99.99%), with small amounts of oxygen and phosphorus added to boost conductivity and ductility. This alloy showcases outstanding electrical and thermal conductivity, top-notch corrosion resistance, and good formability. On the mechanical side, it has a tensile strength of roughly 200–250 MPa, a yield strength of around 50–100 MPa, and a high elongation percentage, making it perfect for fabrication and machining tasks that demand precision and durability. mum of 99.95% copper, with trace amounts of other elements, typically less than 0.05% total. This has a very low hydrogen embrittlement and has excellent ductility and malleability due to the absence of oxygen in its composition. This grade of copper is usually used for applications requiring high conductivity. For example, electrical conductors, busbars, and components in electronic devices. Its corrosion resistance and ease of fabrication further add to its versatility.
| Specifications | ASTM B187, ASTM B301 / ASME SB187, SB301 |
| Range | 3.17 MM TO 350 MM DIA |

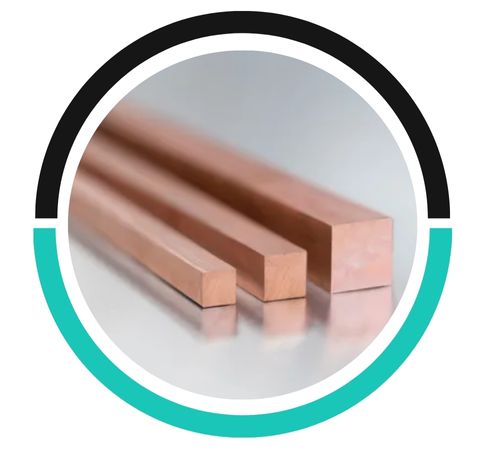

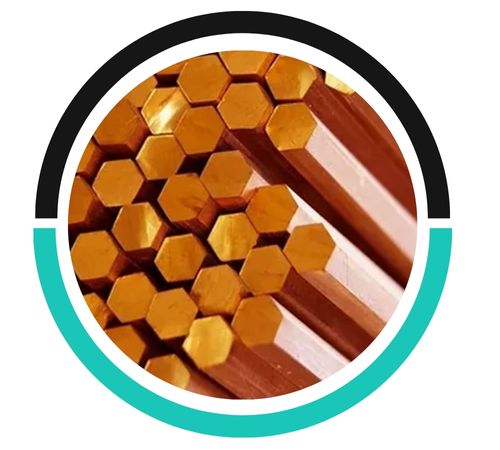

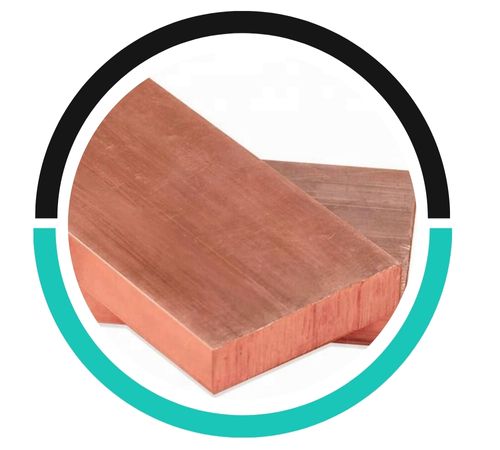

| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Copper Grades | C10500 |
| Elements | |||
|---|---|---|---|
| Cu(1,2,3) | Ag(4) | O | |
| (1) This is a high conductivity copper which has, in the annealed condition a minimum conductivity of 100% IACS except for Alloy C10100 which has a minimum conductivity of 101% IACS. (2) Cu value includes Ag. (3) Cu is determined by the difference between the impurity total and 100%. (4) Ag 0.034% min is the equivelant of, Ag 10 Troy Oz min. | |||
| Min (%) | 99.95 | 0.034 | |
| Max (%) | 0.001 | ||
| Form | Temper | Temper Code | Tensile Strength (ksi) | YS-0.5% Ext (ksi) | Elongation (%) | Rockwell B scale | Rockwell F scale | Rockwell 30T scale | Shear Strength (ksi) | Section Size (in) | Cold Work (%) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| * Measured at room temperature, 68°F (20°C). | |||||||||||
| Rod | As Hot Rolled | M20 | 32 Typ | 10 Typ | 55 Typ | 40 Typ | 22 Typ | 1 | |||
| Hard | H04 | 55 Typ | 50 Typ | 10 Typ | 60 Typ | 94 Typ | 29 Typ | 0.25 | 40 | ||
| Hard | H04 | 45 Typ | 40 Typ | 20 Typ | 45 Typ | 85 Typ | 26 Typ | 2 | 16 | ||
| Hard | H04 | 48 Typ | 44 Typ | 16 Typ | 47 Typ | 87 Typ | 27 Typ | 1 | 35 | ||
| Nominal Grain Size 0.050 mm | OS050 | 32 Typ | 10 Typ | 55 Typ | 40 Typ | 22 Typ | 1 | ||||
When selecting Copper C10500 Bars and Rods, consider factors like conductivity, corrosion resistance, machinability, application requirements, and environmental conditions to ensure optimal performance and durability.
Yes, Copper C10500 Bars and Rods can be used in cryogenic applications due to their excellent thermal conductivity and mechanical stability at extremely low temperatures.
Yes, Copper C10500 Bars and Rods require regular inspection to ensure their performance, detect wear or damage, and maintain their structural integrity in demanding applications.
These Copper C10500 Bars and Rods are extensively utilized in the electrical and electronic sectors due to their exceptional conductivity and minimal impurity levels. They are ideal for creating bus bars, connectors, transformer windings, switchgear components, and other high-conductivity electrical gear. Additionally, they are used in plumbing, heat exchangers, and architectural designs where corrosion resistance and visual appeal are key. The alloy’s excellent formability and weldability also make it a great choice for precision components in marine, automotive, and aerospace industries, ensuring reliable performance in both commercial and industrial settings.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
