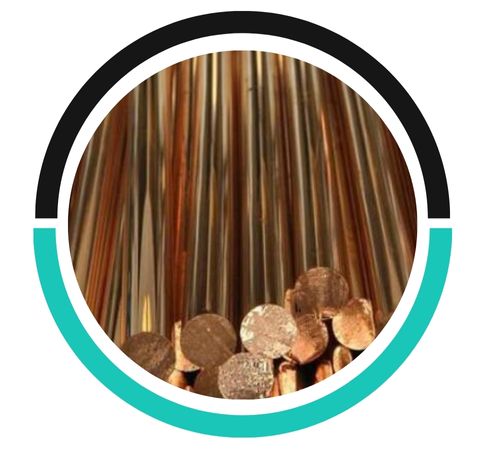

Aung Metals, located in Naypyidaw, Myanmar, has built a solid reputation as a top-notch manufacturer and supplier of high-quality Copper C10200 Bars and Rods. Renowned for its precision in manufacturing and commitment to international standards, Aung Metals delivers copper products that excel in performance, durability, and reliability. Copper C10200, often referred to as Oxygen-Free High Conductivity (OFHC) Copper, is highly valued for its outstanding electrical and thermal conductivity, remarkable purity, and excellent resistance to hydrogen embrittlement. With cutting-edge production methods and a strong focus on customer satisfaction, Aung Metals caters to a variety of industries, including electrical, automotive, and aerospace.
These Copper C10200 Bars and Rods are made up of 99.95% pure copper with very low oxygen content (less than 0.001%), ensuring exceptional conductivity and impressive corrosion resistance. The lack of oxygen contributes to superior ductility and helps prevent embrittlement during high-temperature processing. In terms of mechanical properties, these bars and rods boast a tensile strength of about 200–250 MPa and a yield strength of roughly 50–100 MPa, along with high elongation and formability, making them perfect for precision fabrication and demanding engineering tasks.
| Specifications | ASTM B187, ASTM B301 / ASME SB187, SB301 |
| Range | 3.17 MM TO 350 MM DIA |

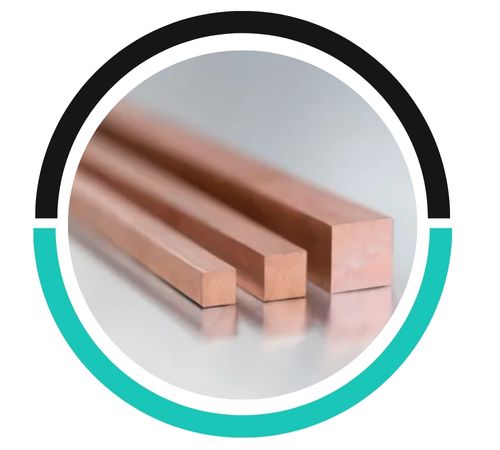

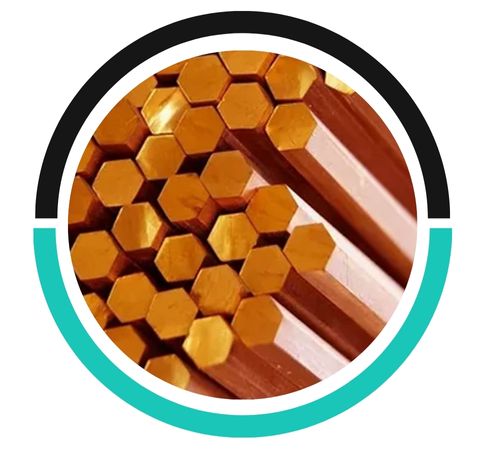

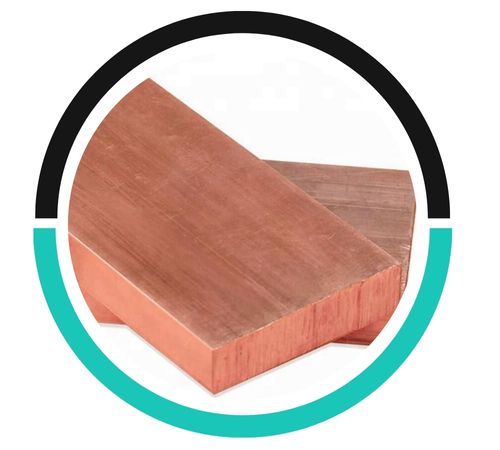

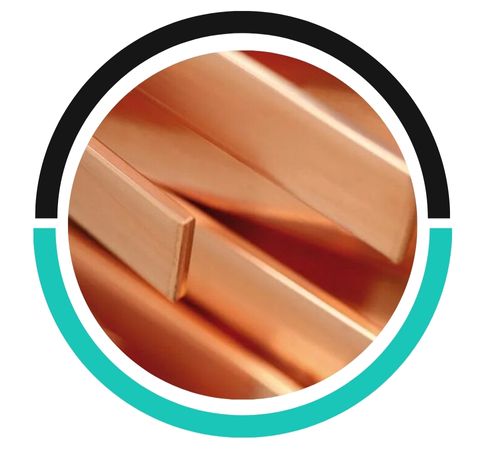

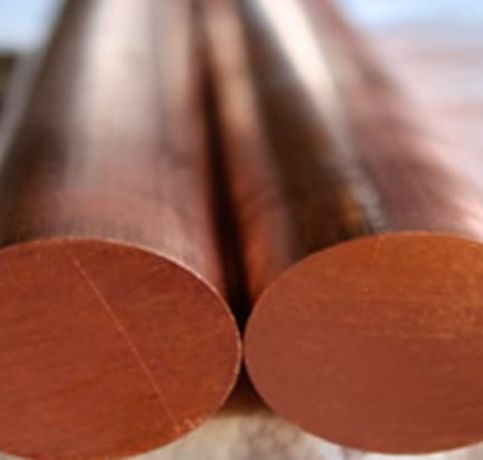

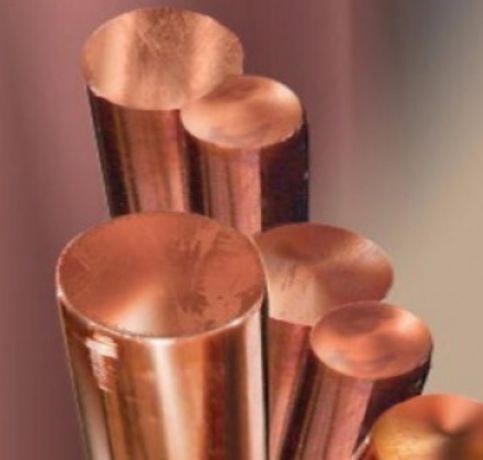

| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Copper Grades | C10200 |
| Melting Point – Solidus ⁰F | 1981 |
| Melting Point – Liquidus ⁰F | 1981 |
| Density lb/cu in. at 68⁰F | 0.323 |
| Electrical Conductivity % IACS at 68⁰F | 101 |
| Specific Gravity | 8.94 |
| Specific Heat Capacity Btu/lb/⁰F @ 68 ⁰F | 0.092 |
| Thermal Conductivity Btu/sq ft/ft hr/ ⁰F at 68⁰F | 226 |
| Coefficient of Thermal Expansion 10-6 per ⁰F (68-392 ⁰F) | 9.6 |
| Modulus of Rigidity ksi | 6400 |
| Coefficient of Thermal Expansion 10-6 per ⁰F (68-212 ⁰F) | 9.4 |
| Modulus of Elasticity in Tension ksi | 17000 |
| Coefficient of Thermal Expansion 10-6 per ⁰F (68-572 ⁰F) | 9.8 |
| Standards | Country | Value |
|---|---|---|
| EN | Europe | Cu-OF |
| DIN CEN/TS 13388 | Germany | CW008A |
| UNS | – | C10200 |
| JIS | Japan | C1020 |
| GB | China | TU1 |
| BS | England | C102 |
| Thermal Properties | Metric | English |
|---|---|---|
| Annealing Point | >= 371 °C | >= 700 °F |
| CTE, linear | 17.0 µm/m-°C @Temperature 20.0 – 100 °C | 9.44 µin/in-°F @Temperature 68.0 – 212 °F |
| 17.7 µm/m-°C @Temperature 20.0 – 300 °C | 9.83 µin/in-°F @Temperature 68.0 – 572 °F | |
| 17.3 µm/m-°C @Temperature 20.0 – 200 °C | 9.61 µin/in-°F @Temperature 68.0 – 392 °F | |
| Thermal Conductivity | 391 W/m-K @Temperature 20.0 °C | 2710 BTU-in/hr-ft²-°F @Temperature 68.0 °F |
| Melting Point | 1083 °C | 1981 °F |
| Specific Heat Capacity | 0.385 J/g-°C @Temperature 20.0 °C | 0.0920 BTU/lb-°F @Temperature 68.0 °F |
| Property/unit | Condition | Min | Max |
|---|---|---|---|
| Tensile Strength (N/mm2) | 1/2H | 290 | |
| Elongation in 5.65 Cross sectional area | O | 32 | |
| Tensile Strength (N/mm2) | H | 350 | |
| Tensile Strength (N/mm2) | O | 260 | |
| Elongation in 5.65Cross sectional area | 1/2H | 4 |
Yes, Copper C10200 Bars and Rods are fully recyclable. Copper retains its properties after recycling, making it an environmentally friendly and sustainable material for repeated use in various industries.
Copper C10200 Bars and Rods generally do not require corrosion protection coatings as copper naturally resists corrosion. However, in certain aggressive environments, protective coatings may be used to enhance durability.
Yes, Copper C10200 Bars and Rods can be welded using techniques like TIG and MIG welding. Their high conductivity and low oxygen content ensure strong and reliable welds for various applications.

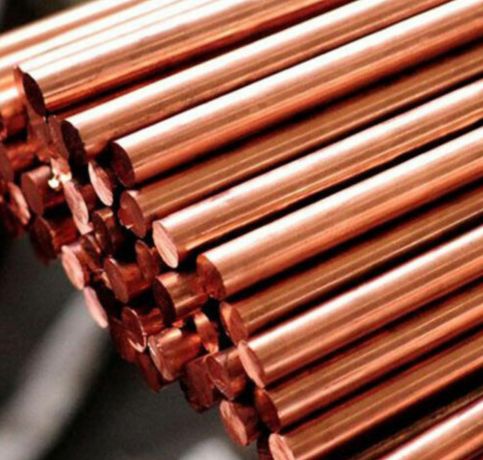

Copper C10200 Bars and Rods find extensive use in the electrical and electronic sectors, where high conductivity and purity are essential. They are perfect for applications like bus bars, transformer windings, switchgear components, semiconductor bases, and vacuum tube parts. The alloy’s excellent corrosion resistance and thermal characteristics also make it a great fit for heat exchangers, cryogenic systems, and industrial furnaces. Furthermore, Copper C10200 is utilized in aerospace, marine, and automotive industries for precision components that demand high performance, reliability, and a long service life even in extreme conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Aung Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Naypyidaw, Myanmar
