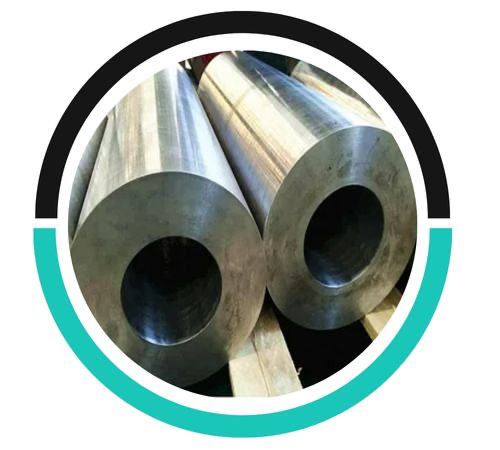

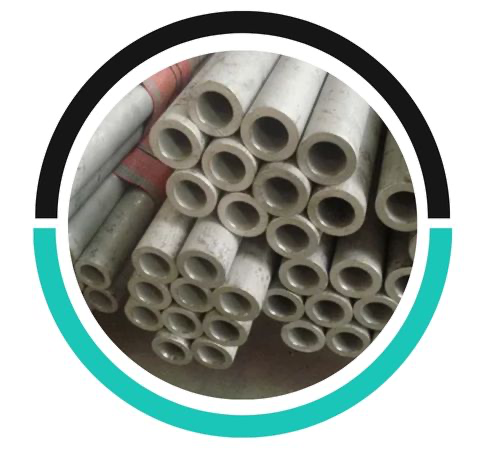

Aung Metals offers SS 317L Hollow Bars, renowned for their exceptional performance in various industries, particularly in pharmaceutical and food processing sectors. With superior corrosion resistance and excellent weldability, these hollow bars are designed to endure demanding environments. SS 317L Hollow Bars are highly valued in construction and marine applications for their remarkable durability. Their enhanced resistance to pitting, crevice corrosion, and high-temperature conditions makes them the ideal choice for harsh and challenging environments, ensuring long-lasting reliability in even the toughest applications.
SS 317L Hollow Bars have a chemical composition typically consisting of 18-20% chromium, 3-4% molybdenum, 12-15% nickel, with low carbon content (0.03% max), which helps prevent carbide precipitation. This composition provides excellent resistance to corrosion, particularly against chlorides and sulfuric acid. The mechanical properties of SS 317L include a tensile strength of approximately 570-700 MPa, yield strength of around 240 MPa, and elongation of 40-50%. These properties, combined with high weldability and resistance to pitting, make SS 317L suitable for harsh, high-temperature, and corrosive environments.
Standard ASTM A276, A479 / ASME SA276, SA479
Range 3.17 MM TO 350 MM DIA
Diameter 25mm to 152mm
Size Tolerance h8, h9(DIN 671), h10, h11, ASTM A484, DIN 1013
Finish Bright, Polish & Black
Form Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wiremesh, Billet, Ingot, Forging Etc.,
Condition Cold Drawn & Polished Cold Drawn, Centreless Ground & Polished
Other Services Machining (CNC), Centreless Grinding (CG), Heat Treatment, Anneling, Pickling, Polish, Rolling, Forging, Cutting, Bending, Minor Fabrication
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317L | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
The low carbon content of SS 317L reduces the risk of carbide precipitation at high temperatures, preventing grain boundary corrosion. This enhances its stability, weldability, and overall performance, making it more reliable in high-temperature environments, especially in corrosive conditions.
SS 317L Hollow Bars offer excellent corrosion resistance, particularly against chlorides and acidic environments, making them ideal for marine and chemical processing industries. Their high strength, durability, and resistance to pitting and crevice corrosion ensure long-lasting performance in harsh conditions.
SS 317L Hollow Bars are widely used in industries requiring high corrosion resistance and durability. Common applications include pharmaceutical and food processing equipment, heat exchangers, reactors, and tanks, where resistance to chlorides and corrosive chemicals is essential. They are also used in marine environments, chemical processing, and construction, particularly for components exposed to harsh conditions. SS 317L’s excellent weldability and resistance to pitting, crevice corrosion, and high temperatures make it ideal for demanding applications, ensuring long-term reliability and performance in extreme environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
