Aung Metals, located in Naypyidaw, Myanmar, has built a solid reputation as a reliable manufacturer and supplier of top-notch Nitronic 50 Bars and Rods. Known for their precision, dependability, and dedication to quality, Aung Metals offers stainless steel products that adhere to international standards and cater to a variety of industrial needs. Their Nitronic 50 Bars and Rods are designed to provide outstanding corrosion resistance, high strength, and wear resistance, making them perfect for tough environments. Thanks to their advanced manufacturing techniques, strict quality control, and prompt delivery, Aung Metals guarantees that every product offers durability, performance, and long-lasting value, positioning themselves as a go-to supplier for high-performance stainless steel solutions.

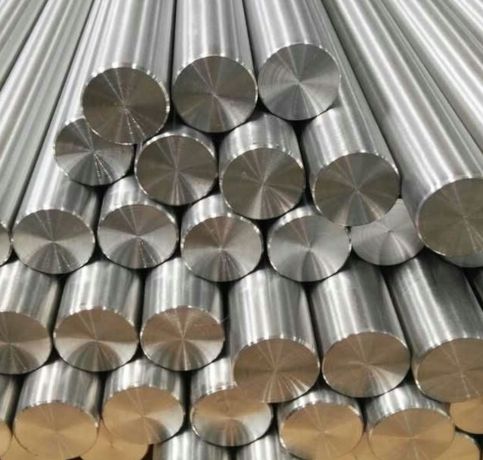

Nitronic 50 Bars and Rods are a high-performance austenitic stainless steel grade, featuring around 20% chromium, 25% nickel, 3% manganese, along with nitrogen and silicon to boost strength, corrosion resistance, and wear properties. In terms of mechanics, these bars and rods boast a tensile strength ranging from 750 to 900 MPa, a yield strength of 380 to 520 MPa, and an elongation of 35 to 45%, ensuring excellent toughness, hardness, and dimensional stability. Their unique composition provides remarkable resistance to stress corrosion cracking, pitting, and galling, making them ideal for high-stress and corrosive industrial settings.
| Grade | Nitronic Alloy 50 / XM-19 (UNS No. S20910) |
|---|---|
| Specification | DIN, JIS, ASTM, BS, ASME, AISI |
| Nitronic 50 Square bar size | 4 to 100mm |
| Nitronic Alloy 50 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Nitronic Alloy UNS S20910 Hex Bar size | 2-100mm A/F |
| Nitronic 50 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Nitronic Alloy 50 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Nitronic Alloy UNS S20910 Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nitronic 50 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Nitronic Alloy 50 Section | 3.0 to 12.0mm thickness |
| Nitronic Alloy UNS S20910 Round bar size | Diameter: 3-~800mm |
| Nitronic 50 Billet Size | 1/2″ to 495mm Diameter |
| Nitronic Alloy 50 Round Bar Standard Dimensions | Diameter / Height: |
| Nitronic 50 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nitronic Alloy 50 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Nitronic Alloy UNS S20910 Technique | Nitronic 50 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nitronic 50 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Nitronic 50 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nitronic 50 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy 50 | .06 | .10 | 0.03 | 1.00 | 0.20 – 0.40 | 11.50 – 13.50 | 20.50 – 23.50 |
| Hardness MAX, Brinell | 241 |
| Ultimate Tensile Strength, ksi | 95 |
| 0.2% Yield Strength, ksi | 50 |
| Elongation, % | 35 |
| Reduction of Area, % | 55 |
| STANDARD | UNS | DIN |
|---|---|---|
| Nitronic 50 | S20910 | 1.3964 |
Nitronic 50 rods typically come in diameters ranging from 1/8" to 6" and lengths from 12" to 144". Custom sizes may also be available based on specific requirements.
Yes, Nitronic 50 bar can be welded using conventional methods like TIG and MIG welding. However, proper preheat and post-weld heat treatment are recommended for optimal results.
Nitronic 50 rods are available in various sizes, ranging from 1/8" to 12" in diameter. Finishes include mill, polished, and ground, depending on specific requirements and applications.
Nitronic 50 Bars and Rods find extensive use in industries like chemical processing, aerospace, marine, and power generation, thanks to their exceptional corrosion resistance and mechanical strength. They are perfect for crafting fasteners, shafts, pump components, valve parts, and structural elements that face harsh or high-stress conditions. Moreover, these bars and rods are utilized in machinery, heat exchangers, and equipment that demand outstanding wear resistance and long-term durability. The blend of high strength, corrosion resistance, and toughness makes Nitronic 50 Bars and Rods a top choice for critical engineering and industrial applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Aung Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Naypyidaw, Myanmar
