Aung Metals, a reputable manufacturer and supplier located in Naypyidaw, Myanmar, is dedicated to providing top-notch Incoloy 800, 800H, and 800HT Bars/Rods. These nickel-iron-chromium alloys are designed to deliver outstanding strength, resistance to oxidation, and stability even at high temperatures. They’re well-known for their ability to maintain structural integrity in harsh thermal and corrosive conditions, making them perfect for demanding industrial applications. Aung Metals takes pride in its precise manufacturing processes and strict adherence to international standards, ensuring that their Incoloy 800/800H/800HT Bars/Rods are suitable for use in petrochemical plants, heat exchangers, power generation, and furnace equipment.
The composition of Incoloy 800/800H/800HT Bars/Rods includes 30–35% nickel, 19–23% chromium, and a balanced mix of iron, along with trace amounts of aluminum, titanium, and carbon. The 800H and 800HT versions have higher carbon content and controlled levels of titanium and aluminum, which boost their creep and rupture strength at elevated temperatures. These alloys showcase impressive tensile strengths ranging from 520–620 MPa and yield strengths of about 205–275 MPa, all while maintaining excellent metallurgical stability, oxidation resistance, and durability under prolonged heat exposure.
Incoloy 800/800H/800HT Bars Specifications
Specification : ASTM B166, A479 / ASME SB166, SA479
Dimension Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI

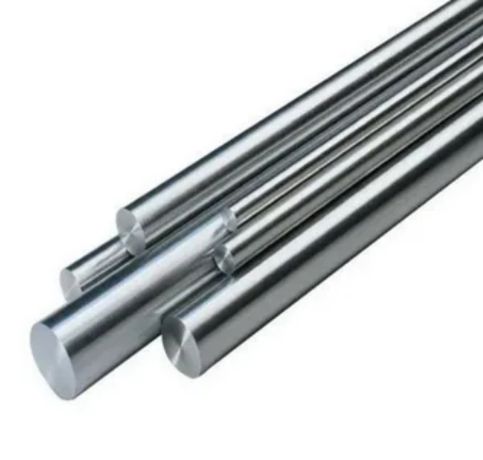

Incoloy Round Bars: Outside Diameter in the range of 4mm to 500mm

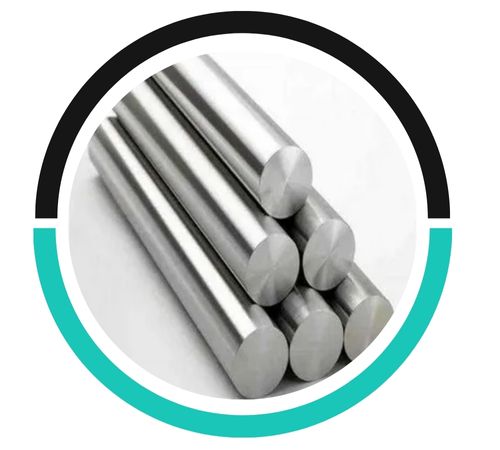

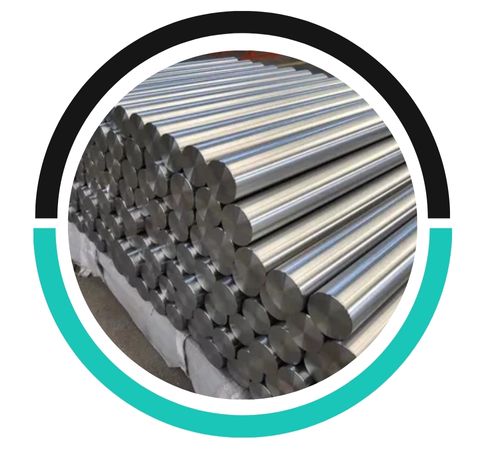

Incoloy Bright Bars : Outside Diameter in the range of 4mm to 200mm

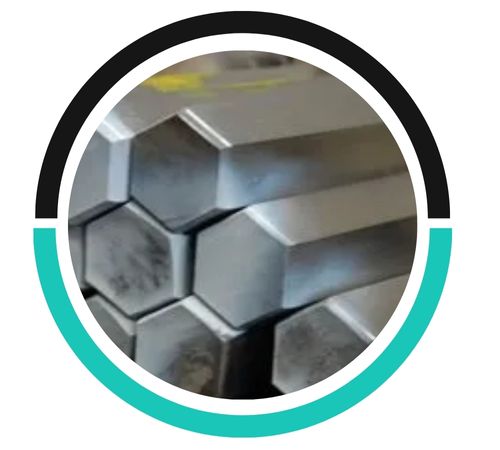

Incoloy Hex Bars : 4mm – 101.6mm

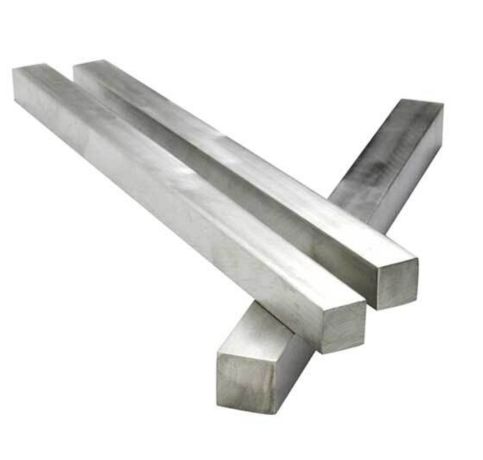

Incoloy Square Bars : 3mm – 100mm

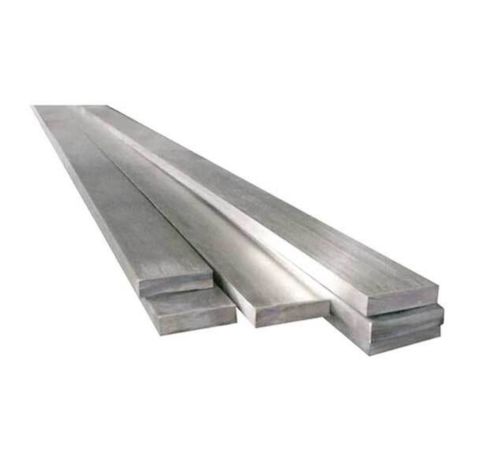

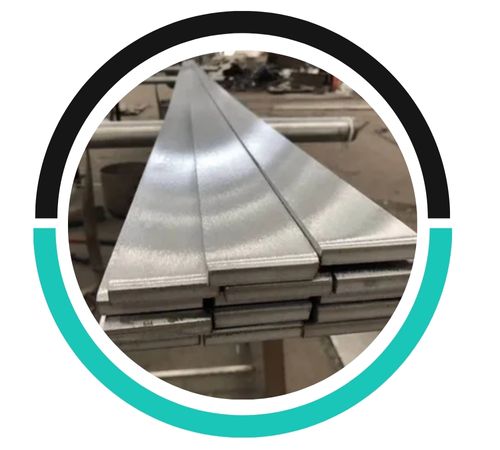

Incoloy Flat Bars : 1/2″ to 10″ in thickness range of 1.6mm to 150mm, Custom Size Stainless Steel Flats available
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Length : 1 to 6 Meters, Custom Cut Lengths
Form : Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc.
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 800 / 800H / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
| STANDARD | WERKSTOFF NR. | UNS | GOST | AFNOR | JIS | BS | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | ЭИ670 | Z8NC32-21 | NCF 800 | NA 15 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | ЭИ670 | Z8NC33-21 | NCF 800H | NA 15(H) | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | ЭИ670 | – | NCF 800HT | NA 15(HT) | X8NiCrAlTi32-21 | XH32T |
| Incoloy 800 Round bar | ||||||||
|---|---|---|---|---|---|---|---|---|
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 | ||||||
Yes, Incoloy 800, 800H, and 800HT bars and rods are highly corrosion-resistant, particularly to oxidation and carburization at high temperatures. They are commonly used in harsh environments such as chemical processing and power generation due to their excellent resistance to sulfur and other corrosive elements.
Yes, Incoloy 800, 800H, and 800HT bars and rods can be customized in size and length to meet specific industrial requirements. They are available in various diameters, lengths, and finishes to suit different applications.
Incoloy 800, 800H, and 800HT bars and rods perform exceptionally well in high-temperature environments, maintaining their strength and resistance to oxidation and carburization. They are ideal for applications in furnaces, heat exchangers, and gas turbines.
Incoloy 800/800H/800HT Bars/Rods are widely utilized in high-temperature and corrosive settings. They’re perfect for applications like heat exchangers, furnace components, petrochemical heaters, and superheaters in power plants. Their exceptional resistance to oxidation and carburization makes them ideal for use in industrial furnaces, gas turbines, and thermal processing systems. Additionally, these bars and rods are employed in chemical processing, refineries, and nuclear facilities. With remarkable mechanical strength, creep resistance, and corrosion protection, Incoloy 800/800H/800HT Bars/Rods offer long-lasting reliability in even the toughest industrial environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
