Aung Metals, a reputable manufacturer and supplier located in Naypyidaw, Myanmar, specializes in high-quality Hastelloy C22 Bars and Rods that are crafted for outstanding corrosion resistance and performance at high temperatures. These bars and rods are built to endure extremely aggressive chemical environments, including both oxidizing and reducing media, making them perfect for applications in chemical processing, marine, and petrochemical industries. Aung Metals is committed to precision manufacturing, ensuring dimensional accuracy and compliance with international quality standards, which results in Hastelloy C22 Bars and Rods that offer strength, durability, and long-lasting reliability for critical industrial operations.
The composition of Hastelloy C22 Bars and Rods primarily includes nickel, molybdenum, and chromium, with small amounts of iron, tungsten, and cobalt. This unique blend provides remarkable resistance to pitting, crevice corrosion, and stress-corrosion cracking, even in the most challenging chemical environments. On the mechanical side, these bars and rods boast a tensile strength of about 690 MPa and a yield strength of around 275 MPa, along with excellent ductility, toughness, and thermal stability. Their well-balanced alloy composition guarantees reliable performance under extreme chemical and high-temperature conditions.
| Standard | ASTM B574, ASME SB574 |

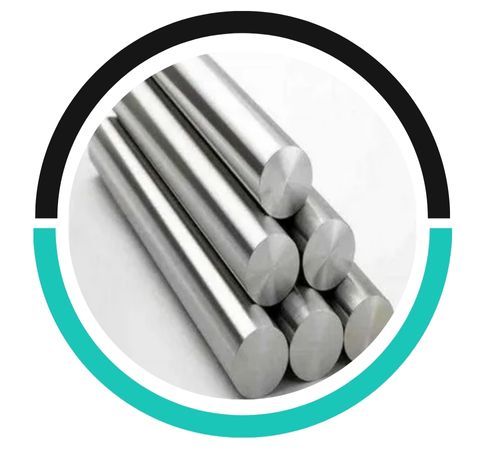

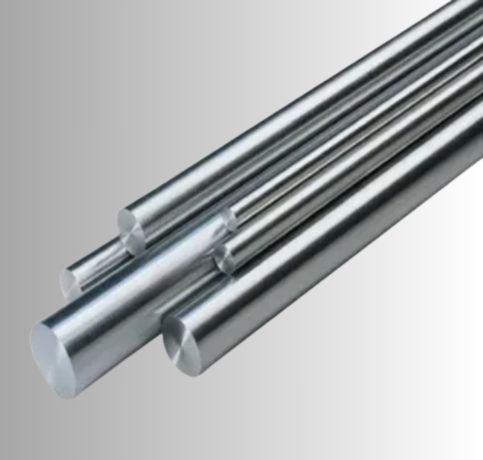

| Round Bar Size | 3mm~ 800mm |

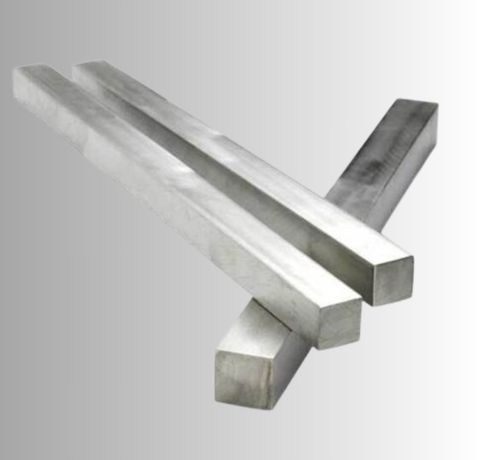

| Square Bar Size | 4mm* 4mm ~100mm* 100mm |

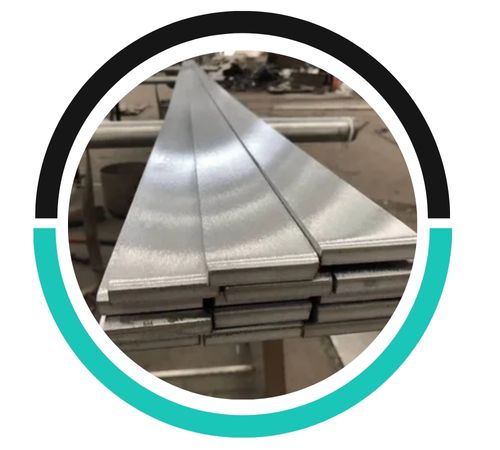

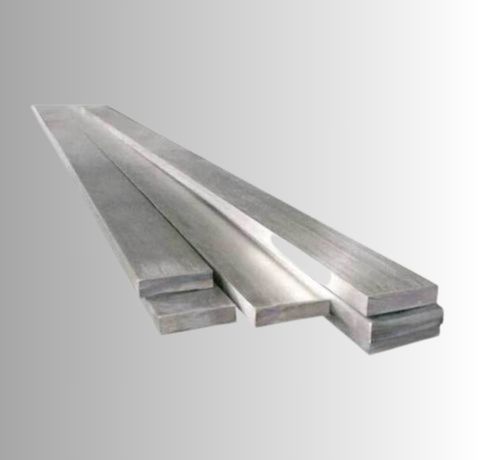

| Flat Bar Size | 2mm ~ 100mm |

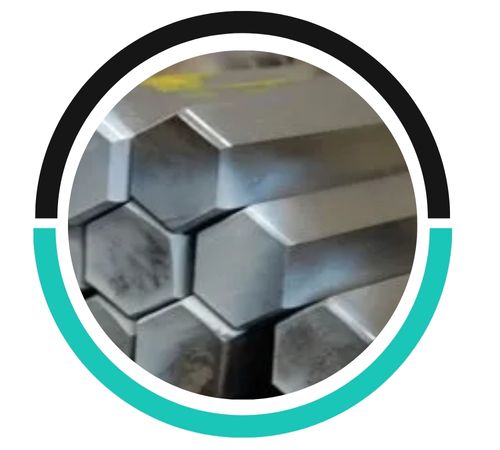

| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | Ni | C | Cr | Co | Fe | Mn | Mo | P | Si | S | W | V |
| Hastelloy C22 | Bal | 0.010 max | 20 – 22.5 | 2.5 max | 2 – 6 | 0.50 max | 12.5 – 14.5 | 0.02 max | 0.08 max | 0.02 max | 2.5 – 3.5 | 0.35 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | GOST | AFNOR | JIS | OR | EN |
| Hastelloy C22 | 2.4602 | N06022 | – | – | NW 6022 | – | NiCr21Mo14W |
| ALLOY C-22 (Ni/22Cr/13Mo/3Fe/3W) / INCONEL 622/C-22 Round Bar | Dimension |
|---|---|
| cold drawn, solution annealed | Dia=16.0 mm, Weight=1.75 kg/m |
| hot worked, solution annealed, peeled | Dia=20.0 mm, Weight=2.6 kg/m |
| hot worked, solution annealed, peeled | Dia=25.4 mm, Weight=4.5 kg/m |
| hot worked, solution annealed, peeled | Dia=30.0 mm, Weight=6.14 kg/m |
| hot worked, sol annealed, peeled | Dia=38.1 mm, Weight=10.1 kg/m |
| extruded, machined, solution annealed | Dia=45.0 mm, Weight=13.15 kg/m |
| hot worked, solution annealed, peeled | Dia=50.8 mm, Weight=18.0 kg/m |
| extruded, machined, solution annealed | Dia=70.0 mm, Weight=35.0 kg/m |
| solution annealed, peeled | Dia=82.55 mm, Weight=47.6 kg/m |
| hot worked, solution annealed, peeled | Dia=101.6 mm, Weight=72.1 kg/m |
| forged, solution annealed, peeled | Dia=115.0 mm, Weight=89.4 kg/m |
| forged, solution annealed, peeled | Dia=130.0 mm, Weight=113.9 kg/m |
| forged, solution annealed, peeled | Dia=150.0 mm, Weight=152.15 kg/m |
| forged, turned | Dia=165.1 mm, Weight=187 kg/m |
Yes, Hastelloy C22 Bars are highly corrosion-resistant, particularly against pitting, crevice corrosion, and stress corrosion cracking in harsh environments. They excel in resisting acids, oxidizing agents, and chloride-induced corrosion.
Yes, Hastelloy C22 rods can be customized in size and length to meet specific industrial requirements. Manufacturers often offer tailored dimensions to suit diverse applications.
Hastelloy C22 bars perform exceptionally well in high-temperature environments due to their superior resistance to oxidation and thermal stability. They maintain strength and corrosion resistance under extreme conditions.
Hastelloy C22 Bars and Rods find extensive use in industries that demand materials capable of withstanding severe corrosion and thermal stress. They are particularly suited for manufacturing heat exchangers, reactors, piping systems, pumps, and valves in chemical processing facilities. Additionally, these bars and rods are utilized in marine and offshore equipment, pollution control systems, and pharmaceutical machinery due to their exceptional resistance to strong acids, oxidizing agents, and chlorides. With their excellent machinability, weldability, and long service life, Hastelloy C22 Bars and Rods are a dependable choice for challenging industrial and engineering applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
