Aung Metals is a respected manufacturer and supplier of Carbon Steel E-200 Bars, proudly based in Naypyidaw, Myanmar. They’ve built a solid reputation for providing reliable, high-performance steel products across various industrial sectors. The company is dedicated to upholding strict quality standards, utilizing advanced manufacturing techniques, and ensuring consistent product uniformity. Their Carbon Steel E-200 Bars are well-regarded for their strength, workability, and dependable performance in both medium and heavy-duty applications. With a strong emphasis on timely delivery, outstanding customer support, and competitive pricing, Aung Metals has established itself as a trusted provider of durable steel solutions for the automotive, engineering, construction, and machinery industries in the region.
These Carbon Steel E-200 Bars primarily consist of a moderate amount of carbon, along with manganese and trace elements that enhance their strength and machinability. They boast good tensile strength, moderate toughness, and reliable wear resistance, making them ideal for general mechanical applications. The material responds well to heat treatment, which can boost hardness and structural stability when needed. E-200 bars strike a great balance between formability and durability, ensuring they perform reliably in environments that experience repeated stress and mechanical loads.
| Specifications | : | ASTM A105, ASME SA105 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |

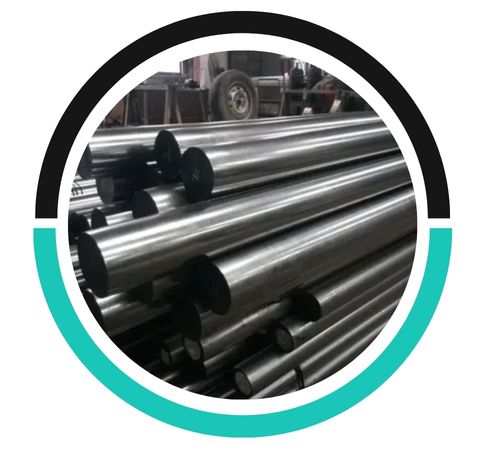

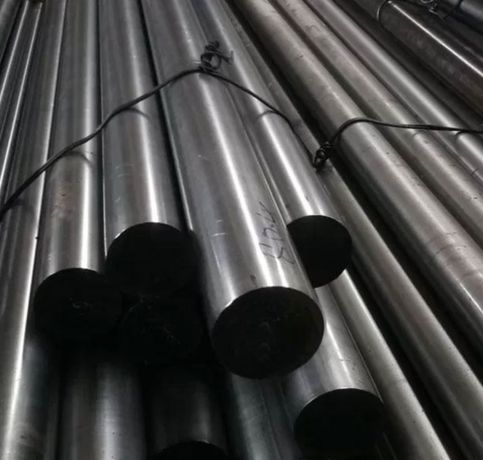

| Carbon Steel EN Series Round Bars | : | 3.0 – 50.8 mm, Over 50.8 – 300mm |
| Carbon Steel EN Series Rectangular Bars | : | 6.35 x 12.7mm,6.35 x 25.4mm,12.7 x 25.4mm |

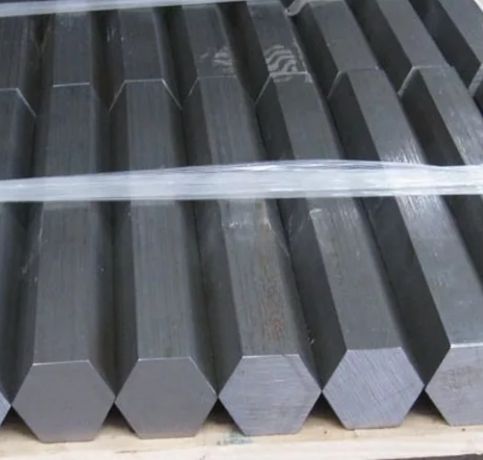

| Carbon Steel EN Series Hex Bars | : | AF5.8mm–17mm |

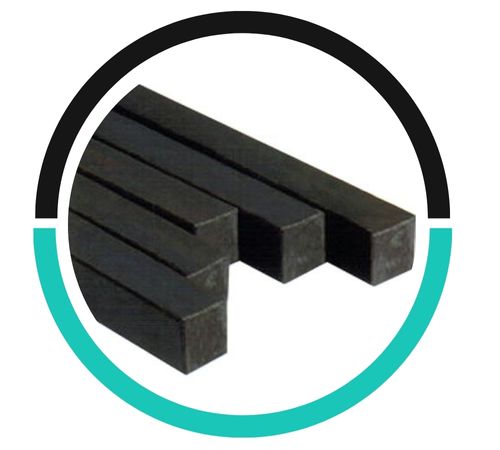

| Carbon Steel EN Series Square Bars | : | AF2mm – 14mm, AF6.35mm,9.5mm,12.7mm, 15.98mm,19.0mm, 25.4mm |
| Carbon Steel EN Series Flat Bars | : | 1/2” to 10” in thickness range of 2mm to 150mm, |
| Finish | : | Bright, Polish & Black |
| Length | : | 1 to 6 Meters, Custom Cut Lengths |
| Form | : | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
| Grade | ||||||
| C% | Si% | Mn% | Cr% | Mo% | W% | |
| EN-1A | 0.007 TO 0.15 | 0.10 | 0.80 TO 1.00 | S | P | – |
| 0.20 TO 0.30 | 0.70 MAX | |||||
| EN-8 | 0.35 TO 0.45 | 0.05 TO 0.30 | 0.60 TO 1.00 | S | P | – |
| 0.06 MAX | 0.06 MAX | |||||
| EN-9 | 0.50 TO 0.60 | 0.05 TO 0.30 | 0.5 TO 0.80 | – | – | – |
| EN-19(V 320) | 0.35 TO 0.45 | 0.10 TO 0.30 | 0.5 TO 0.80 | 0.90 TO 1.40 | 0.20 TO 0.40 | |
| EN-24(V 130) | 0.35 TO 0.45 | 0.10 TO 0.35 | 0.45 TO 0.70 | 0.90 TO 1.40 | 0.20 TO 0.35 | NI |
| 1.3 TO 1.8 | ||||||
| EN-31 R-100 | 0.90 TO 1.20 | 0.10 TO 0.35 | 0.30 TO 0.75 | 1.00 TO 1.60 | – | – |
| EN-36C E-200 | 0.12 TO 0.18 | 0.10 TO 0.35 | 0.30 TO 0.60 | 0.60 TO 1.10 | – | NI |
| 3.0 TO 3.75 | ||||||
| EN-42 | 0.70 TO 0.85 | 0.10 TO 0.40 | 0.55 TO 0.75 | – | – | – |
| EN-44 | 0.90 TO 1.20 | 0.30 | 0.45 TO 0.70 | – | – | – |
| EN-45 F-110 | 50 TO 0.60 | 1.5 TO 2.0 | 0.70 TO 1.00 | – | – | – |
| EN-351 | 0.10 TO 0.20 | 0.35 | 0.60 TO 1.00 | 0.40 to 0.80 | 0.08 to 0.10 | NI |
| 0.60 TO 1.00 | ||||||
| EN-353 | 0.10 TO 0.20 | 0.35 | 0.50 TO 1.00 | 0.75 TO 1.25 | 0.08 to o.15 | NI |
| 1.00 TO 1.50 |
| Grade | HEAT TREATMENT | CORRESPONDING SPECIFICATION | |||||
| Hardening Temperature | Quenching Medium | Tempering Temperature | Brinell Rock well hardness | JAPAN JIS | AISI | POLDI THREAD | |
| EN-1A | – | – | – | – | – | – | – |
| EN-8 | 750-900 | OIL | 150-200 | ||||
| EN-9 | 850-900 | OIL | 200-250 | 55-60 | |||
| EN-19 (V 320) | 900-950 | OIL | 200-225 | 45-55 | SCM 4 | 4140 | |
| EN-24 (V 130) | 830-860 | OIL | 540-680 | 45-55 | SNCM 8 | 4340 | |
| EN-31 R-100 | 820-860 | OIL | 180-225 | 59-65 | |||
| EN-36C E-200 | 780-860 | OIL | 170-210 | 61-63 | SNC 22 | 3415 | |
| EN-42 | 600-700 | DIRECT HARDENING | 40-45 | ||||
| EN-44 | 650-750 | OIL | 150 | 45-50 | |||
| EN-45 | 830-860 | OIL | 470-520 | 50-55 | 9255 | ||
| EN-351 | 850-860 | OIL | 175-200 | 62-64 | |||
| EN-353 | 840-870 | OIL | 150-200 | 62-64 | |||
Common finishes for Carbon Steel E-200 Bar include hot rolled, cold rolled, polished, pickled, galvanized, and painted, each providing varying levels of surface smoothness, corrosion resistance, and appearance.
Yes, Carbon Steel E-200 Bar is available in various lengths. Suppliers typically offer customizable options, ranging from standard sizes to specific lengths according to customer requirements.
Carbon Steel E-200 Bar is commonly used in structural applications, manufacturing of automotive parts, machinery, tools, and general fabrication due to its strength, durability, and resistance to wear and corrosion.
You’ll find Carbon Steel E-200 Bars widely used in industries that need components capable of withstanding steady mechanical loads. They’re commonly found in the automotive sector for making shafts, pins, studs, and fasteners. In construction and fabrication, E-200 bars serve as structural supports, brackets, and reinforcement components. They’re also perfect for machinery parts, frames, tools, and equipment that face moderate wear and stress. Thanks to their blend of strength and workability, E-200 bars are an excellent choice for general engineering applications where durability, ease of machining, and cost-effectiveness are key.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
